Power Mining · Mining systems

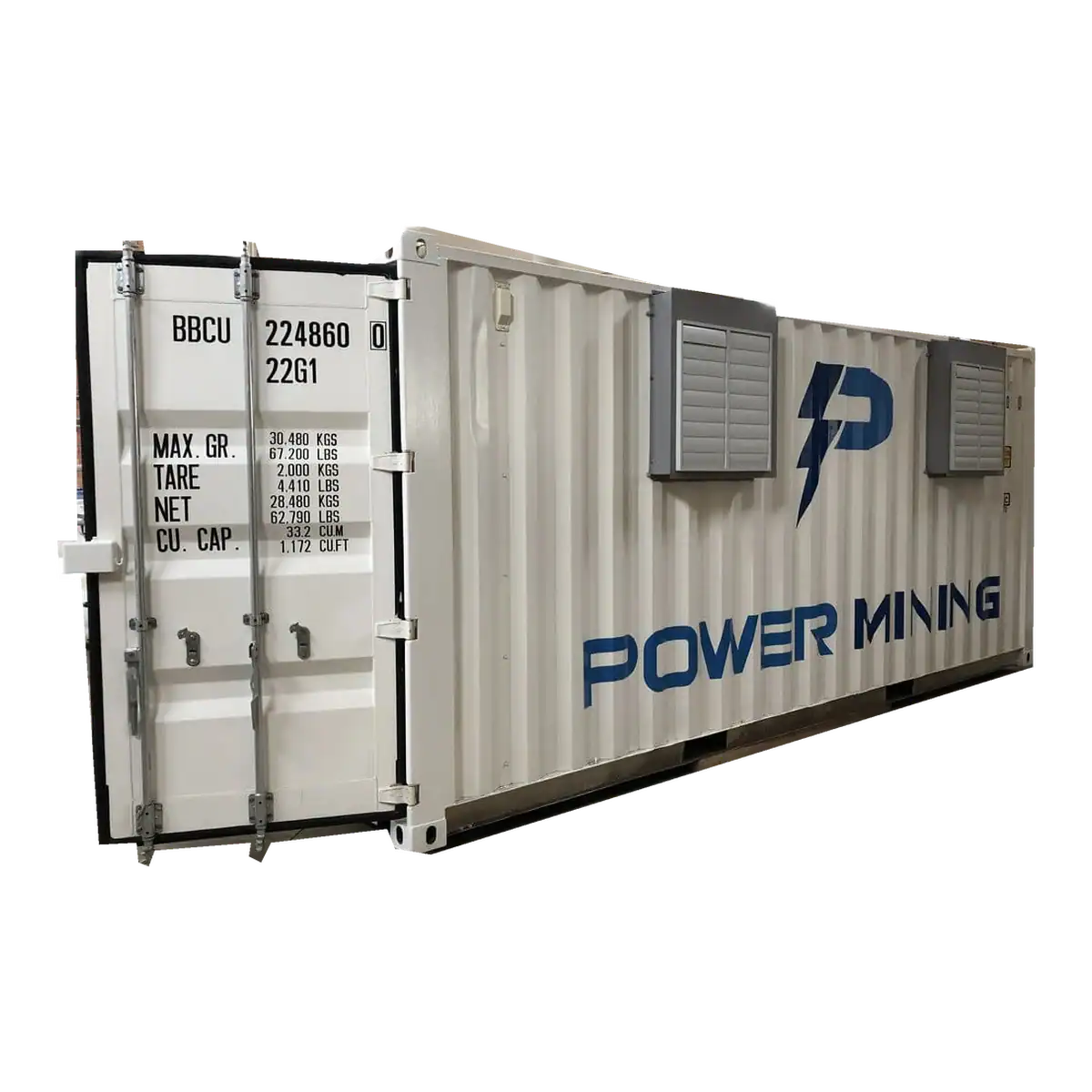

Air Mining Container
Subject to quotationGive an air cooled fleet a compact, serviceable home. The Power Mining 20 ft container offers different shelf arrangements for Antminer S19 and S21 series machines, making the layout a decision you can settle before ordering the miners.
Equipment price
01 / Technical reference
Match the delivered revision, electrical supply and cooling design to your selected fleet.
| Standard layout | 162 S19 or 144 S21 positions |
|---|---|
| HC layout | 189 S19 or 168 S21 positions |
| Reference power | Standard 567 / 532.8 kW; HC 661.5 / 621.6 kW for S19 / S21 |
| Distribution | Standard 1000 / 1250 A; HC 1250 / 1600 A for S19 / S21 |
| PDU | Three phase 63 A main breakers; S21 schedule lists 20 A per socket |
| Filtration | G4 or M5; passive or active options |
| Network | 7 or 8 switches of 24 ports |
| Dimensions | 6.06 × 2.44 × 2.89 m |
Reference figures are subject to the conditions and revision stated by the manufacturer.
02 / A place in your project
Start with your incoming power and intended miner family. Then choose the enclosure, rack layout and cooling arrangement that suit the site.
This is a practical format for a first commercial installation or a site expanding in stages. Select the standard or HC arrangement around the machines you will actually run, leaving the intake, exhaust and maintenance route clear.
Build the quotation around the miner model, site location, available power and cooling conditions. Agree the equipment schedule, delivery arrangements and commissioning responsibilities before placing an order.
03 / Power and plant
Power distribution, controls and cooling equipment determine how the equipment works as an installation.
Request the outlet schedule, phase balance and protection arrangement for the chosen layout. An S21 shelf position alone does not confirm compatibility with every S21 Pro or XP power supply. Monitoring, fans and recirculation packages are configurable items.
Confirm the incoming supply, earthing arrangement, protective devices and miner connectors. A circuit rating or an empty socket does not establish the number of miners that can run continuously.
Allow access to electrical panels and cooling components, with a clear isolation procedure. Include the monitoring network and alarm response in the operating plan.
04 / Useful heat
These are applications to assess with a thermal designer, not promised outputs or evidence that recovery equipment is included.
Warm exhaust can be considered for a nearby drying area or workshop through a designed air handling system. The optional recirculation packages chiefly manage the container intake temperature; they should not be confused with a complete building heating installation.
Assess a controlled supply of warm air to an adjacent workspace, with filtration and an outdoor discharge route.
Compare the required air temperature and cleanliness with the exhaust stream before designing a drying application.
Retain independent cooling when the receiving building or process cannot accept heat. Account for pumps, fans and any temperature boost in the project economics.
05 / Before delivery
A clear specification prevents the site and the equipment from being designed in isolation.
Choose the miner layout before ordering optional ductwork. Power Mining notes that one recirculation set removes 48 miner positions. Confirm the selected package, current drawings and available site supply in the quotation.
Agree the foundation, delivery route, lifting plan and service clearances for the supplied equipment.
Confirm physical fit, connection type and continuous electrical load before committing to a fleet quantity.
Define who installs, tests and commissions each part of the system, including external plant and monitoring.
Project questions
Miners are separate unless expressly included in the written equipment schedule.
Availability and lead time require confirmation. This page does not represent confirmed stock allocation.
Price on application. Ask The Mining Shop for a quotation based on your miner model, intended quantity, site location and cooling requirements.
The quotation will identify the supplied equipment, optional components, delivery and installation responsibilities. Mining hardware is included only when expressly listed.
06 / Fleet planning
Each fleet example is an alternative, not an additional group to combine. The final miner order needs an approved configuration.
The reference capacity is 144 to 189 depending on layout. A named family or rack count does not confirm compatibility with every model in the catalogue.
We will confirm miner revision, connections, cooling requirements and supported quantity before showing a combined price. Earnings totals need an identified miner and a current base estimate.
07 / Source and quotation
Manufacturer information is the starting point. The written quotation defines the supplied configuration.
Power Mining began manufacturing Bitcoin mining containers in 2017. Its equipment range has expanded to include remotely managed power distribution units and assembled open-source home miners such as Bitaxe and NerdQAxe. The company works across both commercial mining infrastructure and compact equipment for individual users. Its container systems, electrical distribution products and home miners serve different installation needs, with specifications defined for each product and configuration.
Manufacturer images are reference illustrations or photographs. Equipment, accessories and layout must be confirmed in the final quotation.
