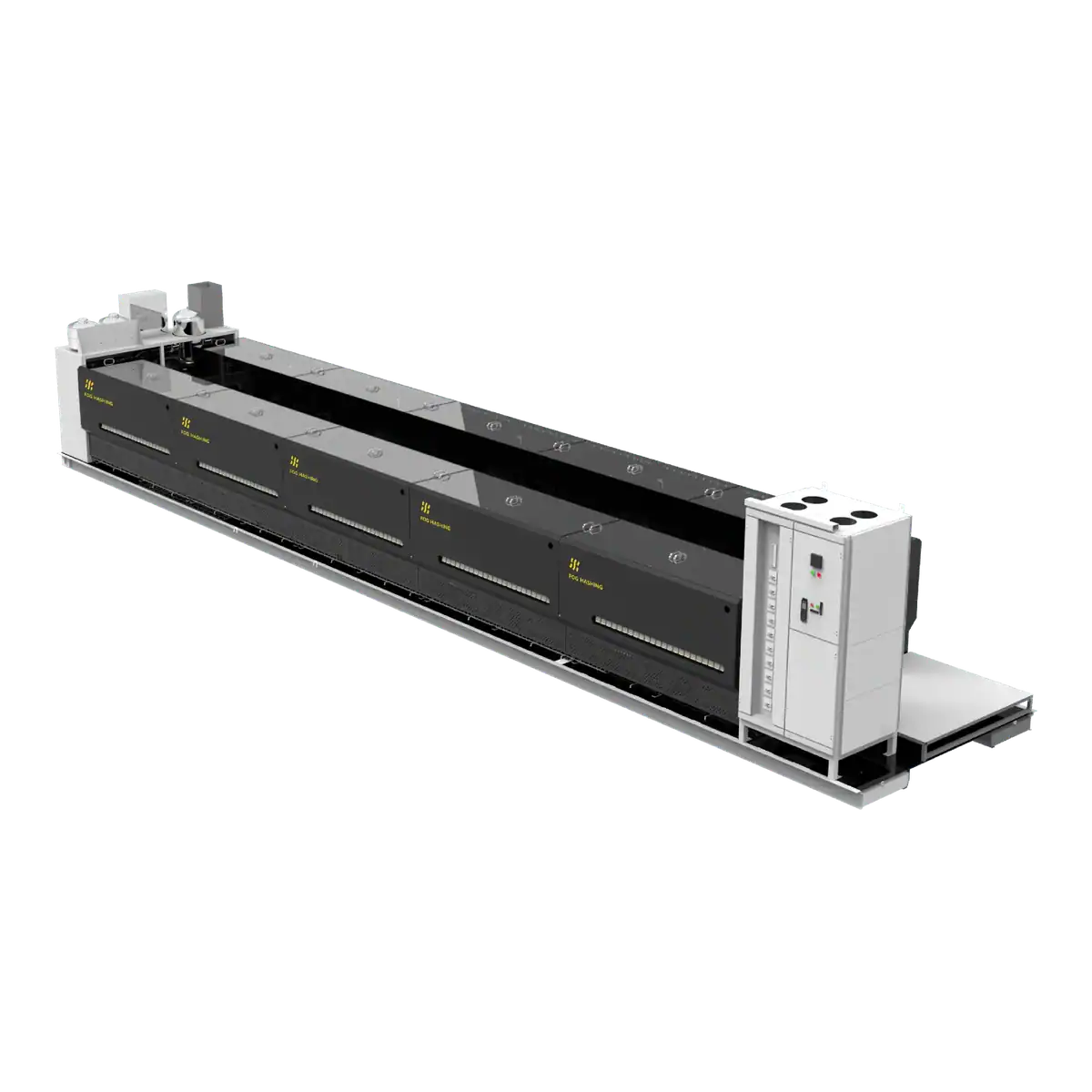

Fog Hashing B100 Cluster Immersion Mining System product view 1
Fog Hashing B100 Cluster Immersion Mining System product view 1

Fog Hashing · Mining systems

Fog Hashing B100 Cluster System

Immersion Mining System

Subject to quotation

Estimated reference price. Budget estimate only, subject to a written quotation. One 1MW cluster with ten tanks and cooling allowance. Coolant, miners and site works excluded.

The B100 Cluster combines ten immersion tanks on one indoor skid. Its nominal 1 MW cooling system connects to an outdoor dry cooler.

Equipment price

£128,200.00

Reference price

Reference capacity1000 kW
Miner positionsUp to 200 positions
CoolingImmersion

01 / Technical reference

Understand the B Series capacity.

Match the delivered revision, electrical supply and cooling design to your selected fleet.

Cooling duty1000 kW nominal
Tanks10 × B100
InstallationIndoor skid with outdoor dry cooler
CircuitDual loop
ControlsPLC and web monitoring
Included assemblyTanks, panels, CDU and piping on skid
Price qualificationBudget estimate only, subject to a written quotation. One 1MW cluster with ten tanks and cooling allowance. Coolant, miners and site works excluded.

Reference figures are subject to the conditions and revision stated by the manufacturer.

02 / A place in your project

Choose how your immersion system grows.

Start with a B100 tank, choose a container, or use an existing building. The module count and the load in each tank determine the working fleet.

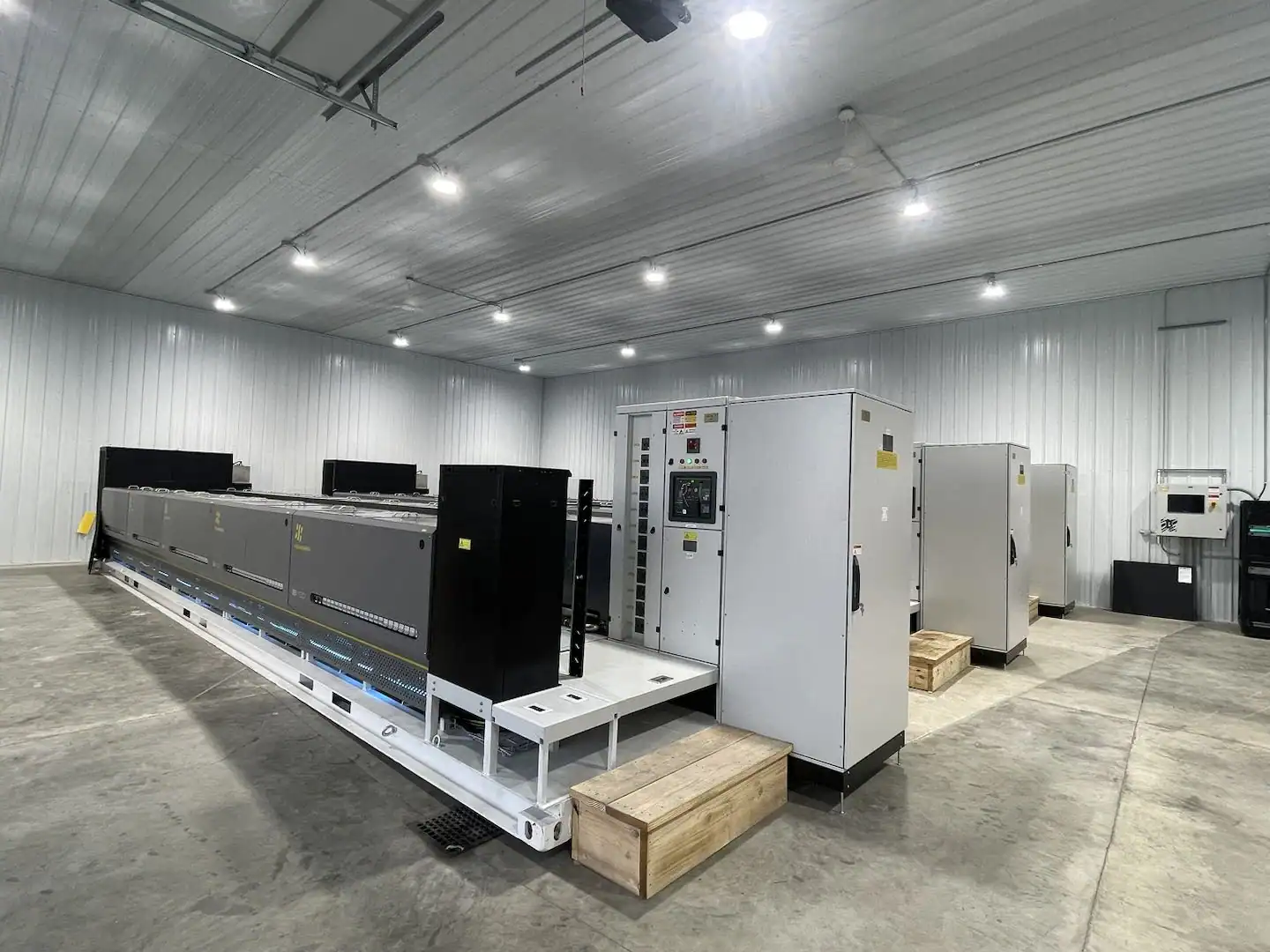

B100 Cluster tanks and control cabinets on a factory floor
Manufacturer photograph of the assembled cluster.

Choosing the format

Tanks, power panels, a coolant distribution unit and piping are assembled on the skid. The dual circuit arrangement separates the tank system from external heat rejection.

PLC and web monitoring cover the tanks, cooler and distribution unit. The warehouse layout must allow for access around the skid as well as the outdoor cooler and pipe route.

Defining the scope

Build the quotation around the miner model, site location, available power and cooling conditions. Agree the equipment schedule, delivery arrangements and commissioning responsibilities before placing an order.

Cooling explained

Show how the cooling works

See how this cooling method moves heat away from the mining hardware.

Hardware in insulating fluid

Compatible hardware sits in a dielectric fluid that absorbs its heat. The fluid passes through a cooler directly, or transfers heat to a separate circuit through an exchanger.

Why choose immersion

Immersion can reduce miner fan noise and exposure to airborne dust. It also brings the heat into a liquid circuit that can support a planned heat reuse system.

What the site needs

Use fluid approved for the hardware, seals and circuit materials. Allow for filling, fluid handling and servicing, along with the electrical load and space required by pumps and external coolers.

Schematic illustration. Hydro and immersion diagrams show a separated circuit example; some systems connect directly to a compatible cooler. Heat reuse needs a suitable local demand and a separate engineered connection.

Power distribution and controls

Power distribution and cooling equipment must be matched to the selected hardware. The published reference configuration is summarised below.

  • Circuit: Dual loop
  • Controls: PLC and web monitoring

04 / Useful heat

Give the heat a purpose.

These are applications to assess with a thermal designer, not promised outputs or evidence that recovery equipment is included.

Mining heat can be useful where there is a nearby demand at a suitable temperature. A separate heat exchanger can transfer useful heat to a compatible building or process circuit.

Keep independent heat rejection available when the receiving site cannot use the heat. Any recovery plant, temperature boost and additional pumps belong in the project specification and energy budget.

Mining heat→Isolated heat exchanger→Suitable local heat demand

Water preheating

Assess whether a separate water circuit can accept useful heat before its normal heating stage.

Greenhouse heating

Match the heating circuit to the crop schedule, seasonal demand and available water temperature.

Seasonal control

Retain independent cooling when the receiving building or process cannot accept heat. Account for pumps, fans and any temperature boost in the project economics.

05 / Before delivery

Prepare for B Series immersion.

A clear specification prevents the site and the equipment from being designed in isolation.

Plan the foundation, lifting route, service access, incoming power and external cooling together. Component weights and dimensions refer to the named parts and fill conditions, rather than automatically describing a complete operating installation.

Site and access

Agree the foundation, delivery route, lifting plan and service clearances for the supplied equipment.

Miner selection

Confirm physical fit, connection type and continuous electrical load before committing to a fleet quantity.

Commissioning

Define who installs, tests and commissions each part of the system, including external plant and monitoring.

Project questions

Clear from the start.

Are miners included?

Miners are separate unless expressly included in the written equipment schedule.

Is this available immediately?

Availability and lead time require confirmation. This page does not represent confirmed stock allocation.

What does the price cover?

The written quotation confirms the supplied equipment, miner quantity where included, freight, tax treatment and commissioning responsibilities. Availability and dispatch timing are confirmed for the order.

06 / Fleet planning

Also bought with.

Each fleet example is an alternative, not an additional group to combine. The final miner order needs an approved configuration.

Match the miner first

The reference capacity is Up to 200 positions. A named family or rack count does not confirm compatibility with every model in the catalogue.

Request a matched fleet quotation

We will confirm miner revision, connections, cooling requirements and supported quantity before showing a combined price. Earnings totals need an identified miner and a current base estimate.

07 / Source and quotation

Plan your Fog Hashing project.

Manufacturer information is the starting point. The written quotation defines the supplied configuration.

Specifications are based on the manufacturer material linked below, using the configuration and conditions shown on this page.

Manufacturer images are reference illustrations or photographs. Equipment, accessories and layout must be confirmed in the final quotation.
