BITMAIN · Mining containers
Hydro mining container
November preorderPrice on request. This mining container is available by enquiry. Contact us for a quotation covering the required configuration, delivery and installation arrangements. Request a quote.

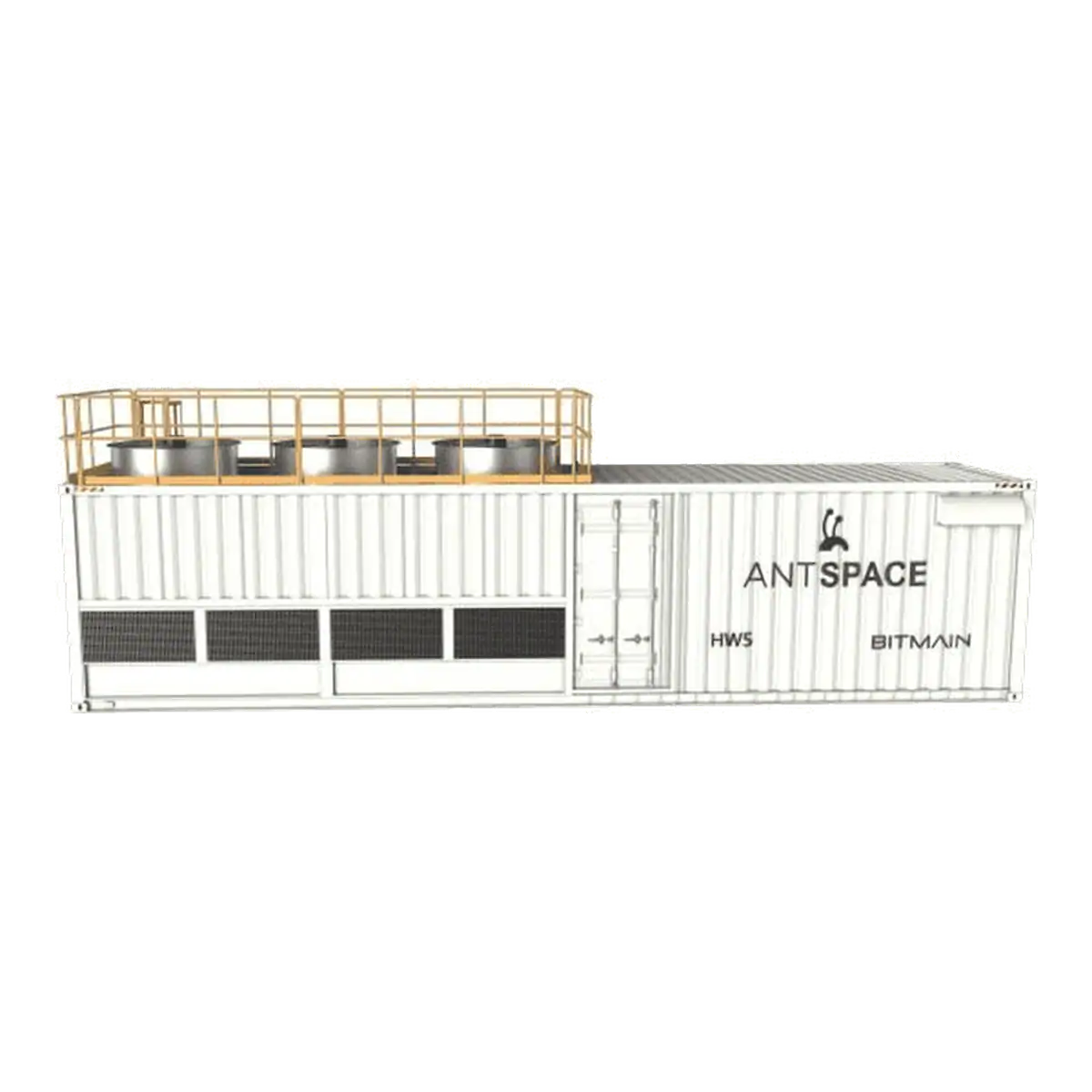

The ANTSPACE HW5 combines space for 210 compatible hydro miners with a closed cooling circuit and a dry and wet cooling tower. Its published cooling duty is 1200 kW.
Container price
Delivery, tax treatment and equipment inclusions confirmed with your quotation.
01 / Technical details
Check the figures for ANTSPACE HW5 against your miner fleet and available site services.
| Revision | V1, support sheet updated 1 August 2024 |
|---|---|
| Dimensions | 12192 × 2438 × 2896 mm |
| Positions | 210 S19 Hyd. or S21 Hyd. reference machines |
| Operating input | 1062 kW in V1 |
| Cooling duty | 1200 kW |
| Supply | 400 V ±5%, 50 or 60 Hz |
| Main switches | 2 × 1200 A |
| Position current | Up to 10 A |
| Circuit flow | At least 85 m³/h |
| Tower input | 15 to 29 kW |
| Water consumption | 0.7 to 1.3 m³/h |
| Supply liquid | 35°C at 28°C wet bulb |
| Shipping mass | 14000 kg |
| Operating mass | 24000 kg |
| PUE | 1.032 in V1 |
| Noise | 70 dBA at 15 m and 25°C |
| Water connections | DN40 supply and DN65 drain |
| Manufacturer announcement | 19 June 2024 |
| Headroom reference (11 October 2026) | Manual v1.13: 1200kW cooling at the specified wet-bulb duty point; 1062kW rated power reference. |
| Coolant flow reference | Published at least 85m3/h. A pump curve and per-miner distribution still need confirmation. |
| Auxiliary power reference | Dry-wet tower 15-29kW. Complete pump, control and other auxiliary schedule not yet confirmed. |
Manufacturer reference values. Final configuration and equipment schedule confirmed before ordering.
02 / The equipment
Choose the configuration around the miner fleet and available site services.
The ANTSPACE HW5 combines space for 210 compatible hydro miners with a closed cooling circuit and a dry and wet cooling tower. Its published cooling duty is 1200 kW.
The selected miner chassis, operating load and site conditions define the final equipment schedule. We can quote the infrastructure together with a compatible fleet and the supporting equipment required for the installation.
The quotation identifies the supplied equipment, compatible miners and required connections. Final capacity depends on the selected hardware and site conditions.
Cooling explained
See how this cooling method moves heat away from the mining hardware.
Coolant flows through passages inside a compatible hydro miner. It carries heat into pipework and onward to the cooling equipment. The electronics are not submerged.
Liquid circuits suit dense installations and reduce reliance on fast fans inside each miner. They also provide a defined route for collecting useful heat.
Match the coolant, flow and pressure to the miner. Include pumps, leak monitoring and suitable outdoor cooling. Pumps and external fans still consume power and create noise.
Compatible hardware sits in a dielectric fluid that absorbs its heat. The fluid passes through a cooler directly, or transfers heat to a separate circuit through an exchanger.
Immersion can reduce miner fan noise and exposure to airborne dust. It also brings the heat into a liquid circuit that can support a planned heat reuse system.
Use fluid approved for the hardware, seals and circuit materials. Allow for filling, fluid handling and servicing, along with the electrical load and space required by pumps and external coolers.
Fans move air through the miners, collecting heat before discharging it outside. A clear path between the filtered inlet and exhaust helps prevent hot air returning to the machines.
The hardware remains directly accessible, and standard air cooled miners can be serviced without draining a liquid circuit. Filters can be selected for the site environment.
Size ventilation for the fleet and local temperature. Consider dust, filter resistance and sound at the site boundary. The sum of fan catalogue ratings is not a measurement of installed airflow.
Schematic illustration. Hydro and immersion diagrams show a separated circuit example; some systems connect directly to a compatible cooler. Heat reuse needs a suitable local demand and a separate engineered connection.
Power distribution and cooling equipment must be matched to the selected hardware. The published reference configuration is summarised below.
04 / Useful heat
Match heat recovery to a real local demand.
Mining heat can be useful where there is a nearby demand at a suitable temperature. A separate heat exchanger can transfer useful heat to a compatible building or process circuit.
Keep independent heat rejection available when the receiving site cannot use the heat. Any recovery plant, temperature boost and additional pumps belong in the project specification and energy budget.
05 / Plan your installation
Share your miner list and site details with our team before confirming the container configuration.
Confirm voltage, distribution and total site demand. Include the miners, cooling equipment and other electrical loads.
Check ambient conditions, the cooling circuit and any water or immersion fluid requirements for your chosen equipment.
Plan vehicle access, unloading, foundations and service clearances. Agree the delivery scope before arranging installation.
The container still needs a suitable supply, foundation, access and the required water services. An integrated package can reduce separate equipment, but the external connections and commissioning scope must be agreed.
The final quantity depends on the exact miner power and current, not only the available positions. Check the supplied PDU schedule and cooling duty before buying a full fleet.
Before you order
Confirm the supplied equipment list in your quotation. Do not assume ASIC miners, accessories or installation are included in the container price.
Compatibility depends on the exact miner model, cooling method, electrical connections and configuration. Send us your proposed miner list for checking.
Ask for the current allocation and expected dispatch window. The quoted lead time and delivery arrangements will be confirmed for your order.
06 / Compatible fleet examples
Compare suitable ANTMINER families using current catalogue base values. Each card represents an alternative fleet of one model, not three fleets to combine.
These examples use the S19 Pro Hydro j0 10 family, whose manufacturer sheet specifies 10A per phase. Newer S21 Hydro variants with a 12A maximum input are excluded from these 10A position examples. Confirm the exact PSU, connectors, rack fit and coolant flow before placing a fleet order. These catalogue models are currently out of stock; the totals are planning comparisons, not an offer of immediate fleet availability. Manufacturer electrical specification
Currently out of stock
Currently out of stock
Currently out of stock
Planning quantity = the lower of the supported slot count and the whole number of miners within the chosen power budget, allowing 5% above each miner's catalogue wattage. This page uses 1062kW for ANTSPACE HW5. HD5 reserves 100kW from its 1512kW normal figure; HW5 uses the older 1062kW limit until its revision is confirmed; HW7 reserves 100kW below its 2000kW cooling rating; MD5 reserves 100kW within its 1000kW container figure. These are conservative screening assumptions, not commissioned or manufacturer approved fleet sizes.
Fleet price = current unit price × quantity. Fleet gross monthly earnings = the same per miner base earnings field used by the homepage card × quantity. Hashrate and miner power also scale with quantity; efficiency and earnings per kWh remain per unit ratios. A combined hardware total is shown only where a container price is available; otherwise the container is quoted separately. No bulk discount, electrical infrastructure, delivery adjustment, cooling electricity, downtime or heat income is assumed.
Gross earnings are estimates before electricity and operating costs. Final quantities also depend on ambient temperature, coolant flow, distribution across cabinets, PSU connectors and the approved rack layout. Check stock allocation and the complete quote before ordering. This section shows compatibility examples and does not claim a purchase history.
07 / Source and quotation
The equipment schedule defines the configuration supplied.
Specifications are based on the manufacturer material linked below, using the configuration and conditions shown on this page.
